Products \\ Mini-Lathe Dream Cutter

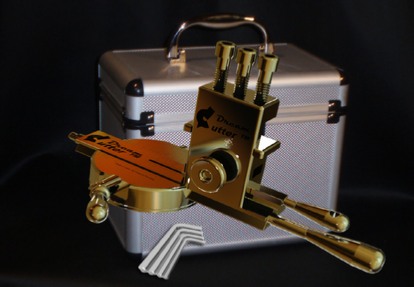

Mini-Lathe Dream Cutter

Model: MLDC-30 Only $399 US Retail Sales

Lathe Compound Radial Multi-Tool

Features & Specs User Guide

Compatibility: Mini-Lathes with 6"-7.25” / 15-17cm Swing over bed

Dimensions:Body 2.5”/6.35cm diameter x .64”/17mm height.

Mounting: (2) 6M low profile bolts, 3 cm apart. and center hole for direct compound swap with most mini-lathes or mount universally on cross-slide bed with T-Nuts. Mount must be located so that Dream Cutter is able to advance to lathe axis center with cross-slide (lathe y axis) transverse adjustment.

Adjustable tool holder height distance range from lathe saddle to work axis center :

1.62”-(2.25”)-2.5” | 41mm-(57mm)-63mm

Min – (optimum) – Max Min – (optimum) – Max

Tool plate set to cam lock 3/8" tool at optimum. Some adjustment to tool plate cam or shims may required to adapt other tools to extreme ends of range. Up to 3/8" tool accommodated.
